Denken Sie dif-FIR-ently über Verstärker. Stabil bis zu 2 Ω mit Ethernet-Steuerung und FIR-Filtern. 4 Kanäle, 1U, Class D. 4 x 1870 W @ 2 Ω. 70 V Hi-Z : 4 x 1100 W. 9,1 kg. Herunterladbare Steuerungssoftware. AES-Eingang

Denken Sie dif-FIR-ently über Verstärker. Stabil bis zu 2 Ω mit Ethernet-Steuerung und FIR-Filtern. 4 Kanäle, 1U, Klasse D. 4 x 1012 W @ 2 Ω. 8,0 kg. Herunterladbare Steuerungssoftware. AES-Eingang

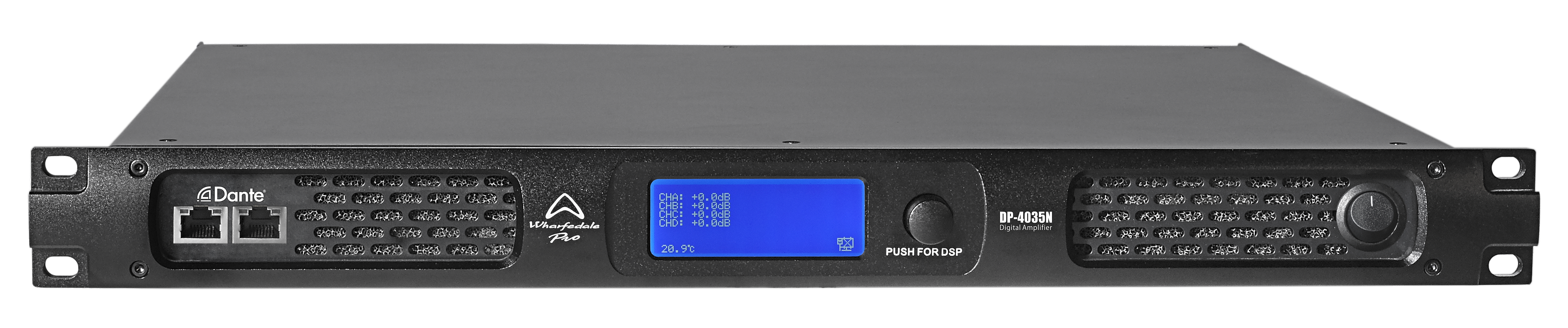

Stabil bis zu 2 Ω mit Dante(tm)-Schnittstelle und FIR-Filtern. 4 Kanäle, 1U, Class D. 4 x 1012 W @ 2 Ω. 8,0 kg. Herunterladbare Steuerungssoftware. AES-Eingang

Denken Sie dif-FIR-ently über Verstärker. Stabil bis zu 2 Ω mit Dante(tm)-Schnittstelle und FIR-Filtern. 4 Kanäle, 1U, Class D. 4 x 1870 W @ 2 Ω. 70 V Hi-Z : 4 x 1100 W. 9,1 kg. Herunterladbare Steuerungssoftware. AES-Eingang

Denken Sie dif-FIR-ently über Verstärker. Stabil bis zu 2 Ω mit Dante(tm)-Schnittstelle und FIR-Filtern. 4 Kanäle, 1U, Class D. 4 x 2890 W @ 2 Ω. 70 V Hi-Z : 4 x 1700 W. 9,1 kg. Herunterladbare Steuerungssoftware. AES-Eingang

Denken Sie dif-FIR-ently über Verstärker. Stabil bis zu 2 Ω mit Ethernet-Steuerung und FIR-Filtern. 4 Kanäle, 1U, Class D. 4 x 2890 W @ 2 Ω. 70 V Hi-Z : 4 x 1700 W. 9,1 kg. Herunterladbare Steuerungssoftware. AES-Eingang

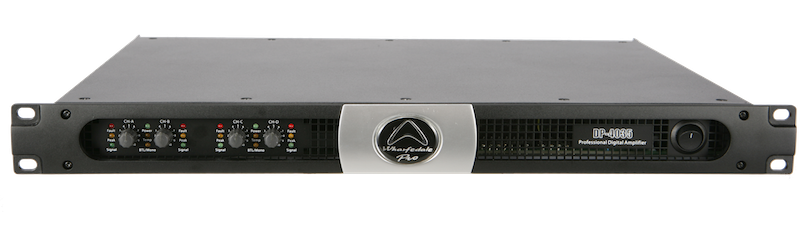

Class D Endstufe, 4 x 350W/595W@8Ohm/4Ohm SPECIFICATIONS  Model NameDP-4035 Power Output  Stereo power output 8O x 24 x 350w 4O x 24 x 595w Bridged mono output 16O2 x 700w Bridged mono output 8O2 x 1190w Input sensitivity & Impedance  Sensitivityselectable 1Vrms/32dB/26dB Balanced XLR input20KO Max input level22dBu (9.7Vrms) Voltage gain35dB Slew rate>50V / µs Crosstalk<-70dB S/N>105dB Distortion (1W)<0.05% Frequency response  +/-1dB @ 8O20Hz - 20kHz +/-3dB @ 8O20Hz - 30kHz Damping factor>500 TopologyClass D Connectors  Signal inputFemale XLR jacks Power outputspeakON compatible Controls  Front panelAC Switch, 4 x channel gain knobs Rear panelParallel, Stereo & Bridge mode switch, Limiter switch ProtectionsThermal, Over-current, Output DC, Output short protect. IndicatorsPower, Protect, Signal, Limiter CoolingVariable speed fan AC Power90 ~ 260VAC, 50 ~ 60Hz. Dimensions44 * 485 * 312mm Weight (Net)8.14kg Weight (Gross)10.2kg

Class D Endstufe, 4 x 1200W/2040W@8Ohm/4Ohm SPECIFICATIONS  Model NameDP-4120 Power Output  Stereo power output 8O x 24 x 1200w 4O x 24 x 2040w Bridged mono output 16O2 x 2400w Bridged mono output 8O2 x 4080w Input sensitivity & Impedance  Sensitivityselectable 41/38/35/32dB Balanced XLR input20KO Max input level22dBu (9.7Vrms) Voltage gain41dB Slew rate>50V / µs Crosstalk<-90dB S/N>110dB Distortion (1W)<0.02% Frequency response  +/-1dB @ 8O20Hz - 20kHz +/-3dB @ 8O20Hz - 30kHz Damping factor>5000 TopologyClass D Connectors  Signal inputFemale XLR jacks Power outputspeakON compatible Controls  Front panelAC Switch, 4 x channel gain knobs Rear panelParallel, Stereo & Bridge mode switch, Limiter switch ProtectionsThermal, Over-current, Output DC, Output short protect. IndicatorsPower, Protect, Signal, Limiter CoolingVariable speed fan AC Power90 ~ 260VAC, 50 ~ 60Hz Dimensions44 * 485 * 465mm Weight (Net)12.3kg Weight (Gross)14.9kg

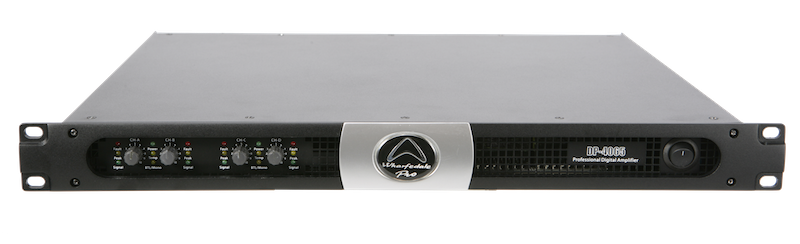

Class D Endstufe, 4 x 650W/1100W@8Ohm/4Ohm SPECIFICATIONS  Model NameDP-4065 Power Output  Stereo power output 8O x 24 x 650w 4O x 24 x 1100w Bridged mono output 16O2 x 1300w Bridged mono output 8O2 x 2200w Input sensitivity & Impedance  Sensitivityselectable 38/35/32/29dB Balanced XLR input20KO Max input level22dBu (9.7Vrms) Voltage gain38dB Slew rate>50V / µs Crosstalk<-90dB S/N>107dB Distortion (1W)<0.02% Frequency response  +/-1dB @ 8O20Hz - 20kHz +/-3dB @ 8O20Hz - 30kHz Damping factor>5000 TopologyClass D Connectors  Signal inputFemale XLR jacks Power outputspeakON compatible Controls  Front panelAC Switch, 4 x channel gain knobs Rear panelParallel, Stereo & Bridge mode switch, Limiter switch ProtectionsThermal, Over-current, Output DC, Output short IndicatorsPower, Protect, Signal, Limiter CoolingVariable speed fan AC Power90 ~ 260VAC, 50 ~ 60Hz Dimensions44 * 485 * 370mm Weight (Net)9.18kg Weight (Gross)11.26kg

Class D Endstufe, 4 x 350W/595W@8Ohm/4Ohm SPECIFICATIONS  Model NameDP-4035 Power Output  Stereo power output 8O x 24 x 350w 4O x 24 x 595w Bridged mono output 16O2 x 700w Bridged mono output 8O2 x 1190w Input sensitivity & Impedance  Sensitivityselectable 1Vrms/32dB/26dB Balanced XLR input20KO Max input level22dBu (9.7Vrms) Voltage gain35dB Slew rate>50V / µs Crosstalk<-70dB S/N>105dB Distortion (1W)<0.05% Frequency response  +/-1dB @ 8O20Hz - 20kHz +/-3dB @ 8O20Hz - 30kHz Damping factor>500 TopologyClass D Connectors  Signal inputFemale XLR jacks Power outputspeakON compatible Controls  Front panelAC Switch, 4 x channel gain knobs Rear panelParallel, Stereo & Bridge mode switch, Limiter switch ProtectionsThermal, Over-current, Output DC, Output short protect. IndicatorsPower, Protect, Signal, Limiter CoolingVariable speed fan AC Power90 ~ 260VAC, 50 ~ 60Hz. Dimensions44 * 485 * 312mm Weight (Net)8.14kg Weight (Gross)10.2kg

Class D Endstufe, 4 x 350W/595W@8Ohm/4Ohm SPECIFICATIONS  Model NameDP-4035 Power Output  Stereo power output 8O x 24 x 350w 4O x 24 x 595w Bridged mono output 16O2 x 700w Bridged mono output 8O2 x 1190w Input sensitivity & Impedance  Sensitivityselectable 1Vrms/32dB/26dB Balanced XLR input20KO Max input level22dBu (9.7Vrms) Voltage gain35dB Slew rate>50V / µs Crosstalk<-70dB S/N>105dB Distortion (1W)<0.05% Frequency response  +/-1dB @ 8O20Hz - 20kHz +/-3dB @ 8O20Hz - 30kHz Damping factor>500 TopologyClass D Connectors  Signal inputFemale XLR jacks Power outputspeakON compatible Controls  Front panelAC Switch, 4 x channel gain knobs Rear panelParallel, Stereo & Bridge mode switch, Limiter switch ProtectionsThermal, Over-current, Output DC, Output short protect. IndicatorsPower, Protect, Signal, Limiter CoolingVariable speed fan AC Power90 ~ 260VAC, 50 ~ 60Hz. Dimensions44 * 485 * 312mm Weight (Net)8.14kg Weight (Gross)10.2kg
